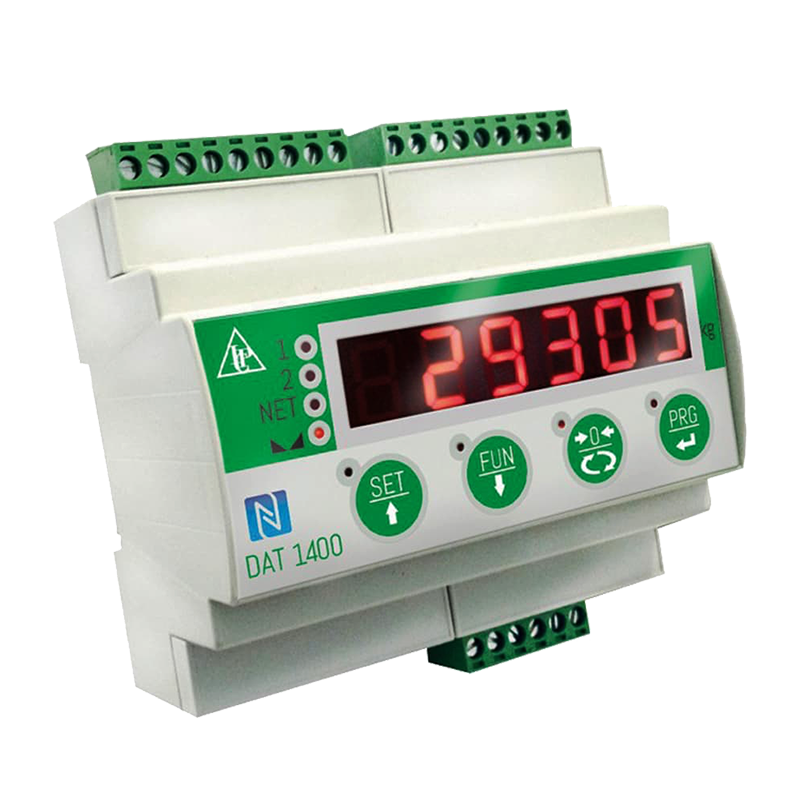

DAT 1400 Weight Transmitter
Pavone Sistemi
FEATURES
- Multiple fieldbus configurations
- Fieldbus + analog dual configuration option
- Capacitive keypad
- Peak hold function for dynamic measurement
- Removable screw terminal blocks
- NFC data sharing
- OPTIMATION® software for PC connection (USB)
- Engineered and manufactured in Italy
APPLICATION
- Up to 8 load cell connections in parallel
- Suitable for batching solutions
- Wide variety of high-accuracy industry applications

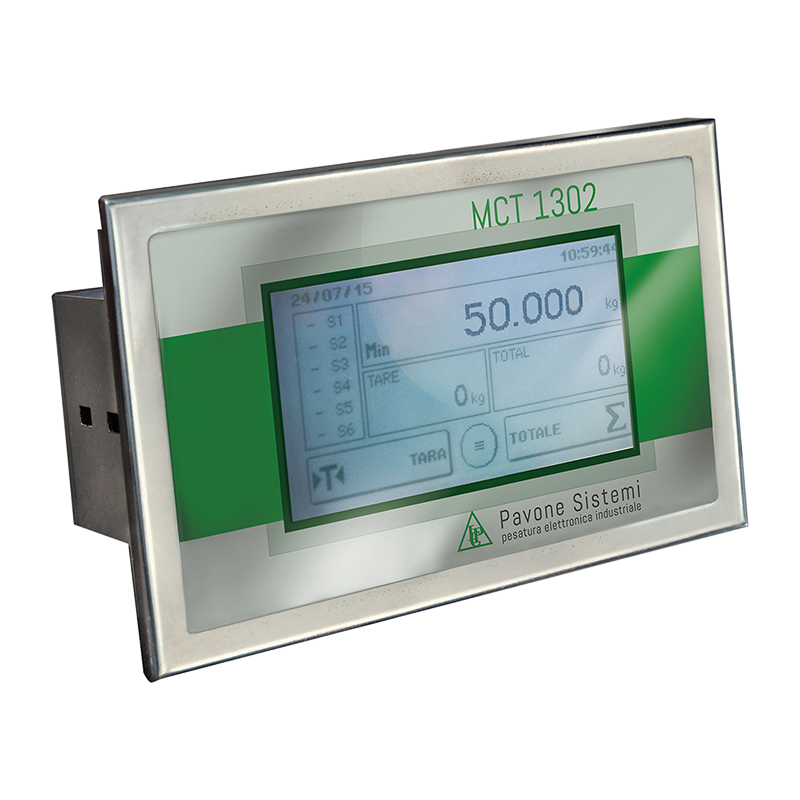

MCT 1302 Weight Indicator
Pavone Sistemi
FEATURES
- Multiple fieldbus configurations
- Fieldbus + analog dual configuration option
- LCD touch screen display
- 64kB internal data memory; expandable to 1024kB
- Removable screw terminal blocks
- NFC data sharing
- OPTIMATION® software for PC connection (USB)
- Engineered and manufactured in Italy
APPLICATION
- Suitable for every type of industry
- Static weighing and batching
- Theoretical or dead weight calibration
- Multi-component dosing

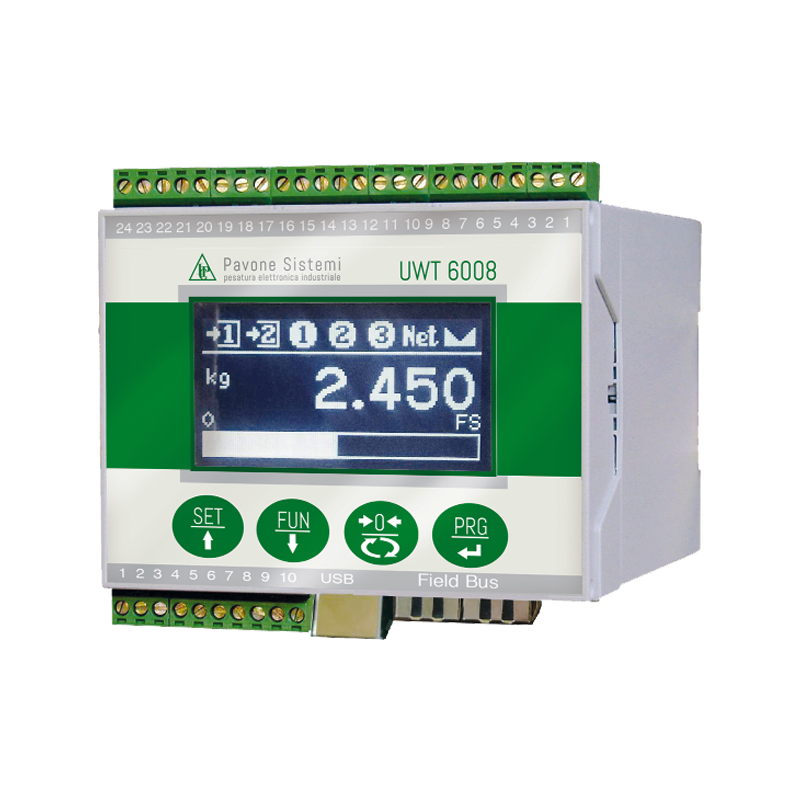

UWT 6008 Weight Transmitter
Pavone Sistemi
FEATURES
- Multiple fieldbus configurations
- Fieldbus + analog dual configuration option
- 4 and 8 load cell models
- Monitoring/alarm for: cell signal drift, missing connections, cell failure, unbalanced weight distribution
- Distributes load to functional cells in case of load cell failure
- 64kB internal data memory; expandable up to 1024 kB
- OPTIMATION® software for PC connection (USB)
- Engineered and manufactured in Italy
APPLICATION
- Ideal for all industrial applications with load distribution on different cells
- Theoretical or dead weight calibration
- Performs Tester 1008 calibration and simulation functions for a single system

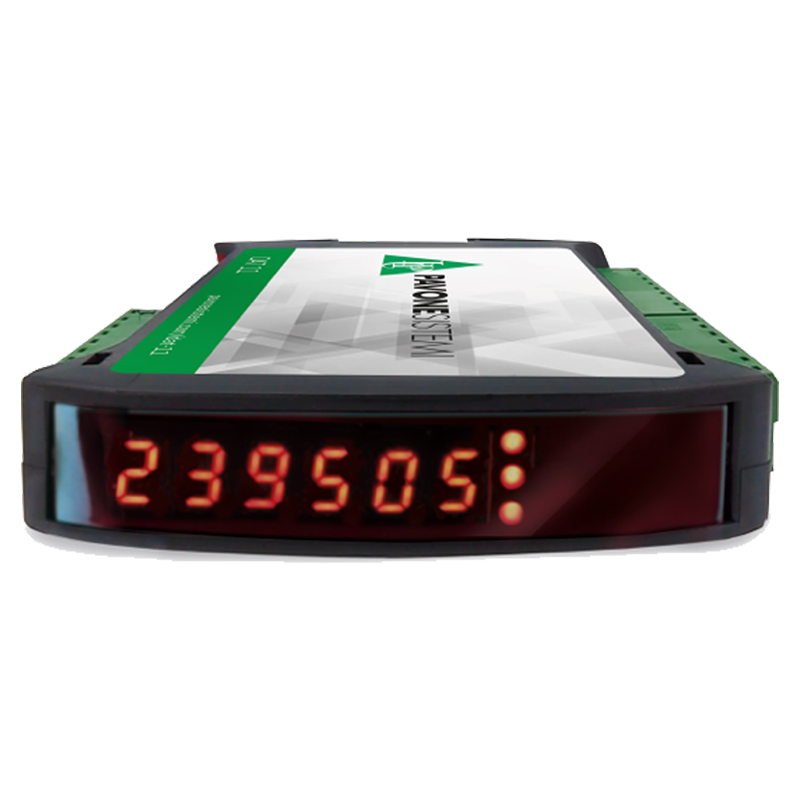

DAT 11 Weight Transmitter
Pavone Sistemi
FEATURES
- Multiple fieldbus configurations
- High performance A/D converter for fastest data transmission in its class
- Mechanical keyboard with programmable key block
- Peak hold function for dynamic measurement
- Removable screw terminal blocks
- Selectable logic input function, unipolar or bipolar analog output
- 64kB internal data memory; expandable up to 1024 kB
- OPTIMATION® software for PC connection (USB)
- Engineered and manufactured in Italy
APPLICATION
- Ideal for all industrial applications with load distribution on different cells
- Theoretical, dead weight, and data sheet calibration

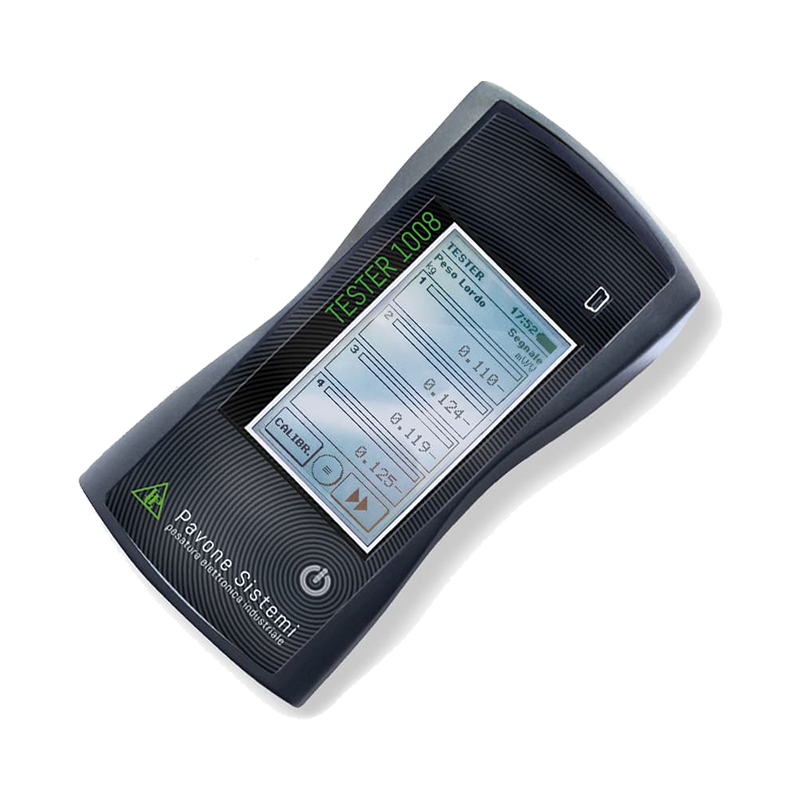

Tester 1008
Pavone Sistemi
FEATURES
- Unique product used for checking distribution of load cells
- LCD touch screen display
- Assists in avoiding overloads or imbalances detrimental to measurement precision
- Stores 100 test results; USB connection for downloading to computer
- Engineered and manufactured in Italy
APPLICATION
- Quickly checks calibration of four-cell systems in minutes
- System simulator function
- Instrumental calibration of weight indicators and transmitters
- Saves time and optimizes process for checking and tracking calibrations in a variety of systems
